GE Refrigerator Door Handle Replacement: The Quick Fix

For a ge refrigerator door handle replacement, check the model number inside your fridge and buy a handle made for that model and door position. Loosen the handle’s set screws with the correct Allen wrench, lift off the old handle, fit the new one onto the mounting posts, and tighten the screws until snug. Many GE handles use a 3/32-inch or 1/8-inch wrench. If the handle only wobbles, try tightening it before buying a replacement. The replacement of a GE refrigerator door handle is straightforward once you confirm the part matches your model and door position.

I’m Vasyl Turetsky, founder and appliance repair specialist at iFix Appliances, serving homeowners in the Raleigh area. My experience repairing GE refrigerators informs this guide to ge refrigerator door handle replacement, starting with how to tell whether the handle or its hardware needs attention.

Ge refrigerator door handle replacement basics:

• fridge handle broken
• refrigerator door hinge repair
• ge refrigerator shelves replacement

Essential Preparation and Model Compatibility

When addressing a wobbly or broken refrigerator handle, jumping straight to ordering parts without checking your appliance specifications can lead to frustration. Over the years servicing kitchens in Raleigh, Cary, and Durham, I have seen many homeowners purchase the wrong handle style because two fridges looked identical from the outside.

A refrigerator handle endures heavy daily use. Over five to seven years, mechanical fatigue can cause internal plastic sleeves to crack, set screws to back out, or mounting studs to loosen. Before purchasing replacement hardware, I always recommend identifying the exact model tag on your unit. If you own an upscale unit, understanding GE Profile refrigerator service requirements will ensure you preserve both the aesthetic finish and internal door mechanics during maintenance.

Finding Your Model Number and Verifying Compatibility

Your model number is the master key to finding the right fit. It is never located on the user manual’s front cover, as manuals often cover an entire product line.

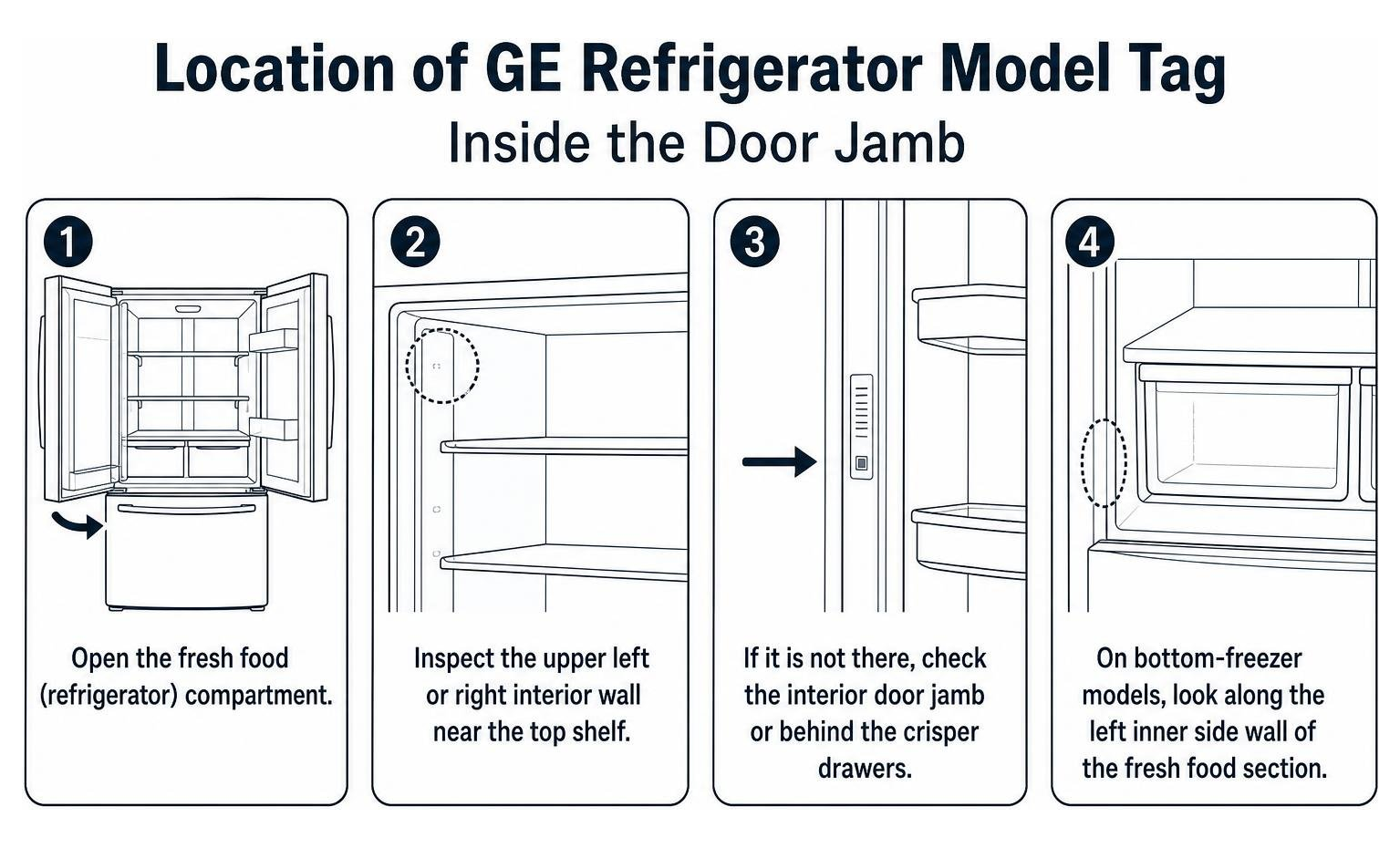

To locate the actual model tag on your GE appliance:

1. Open the fresh food (refrigerator) compartment.
2. Inspect the upper left or right interior wall near the top shelf.
3. If it is not there, check the interior door jamb or behind the crisper drawers.
4. On bottom-freezer models, look along the left inner side wall of the fresh food section.

The model number typically starts with letters like GFE, GNE, GDE, GBE, or ZIS (for Monogram units). Once you have this string of characters, you can source original GE replacement parts that match your appliance’s exact mounting post spacing, curvature, and finish.

Sourcing the Right GE Refrigerator Door Handle Replacement Parts

Handle designs vary significantly across GE lineups. A side-by-side fresh food handle rarely fits a bottom freezer drawer, even within the same product family.

Popular handle assemblies include:

• WR12X34830: A stainless steel freezer door handle weighing 1.35 lb, priced around $52.97.
• WR12X34550: A complete stainless handle set with mounting hardware, priced around $102.47 (17″ depth, 1″ height, 2″ width, weighing 1.85 lb).
• WR12X32350: A black door handle set measuring 16-3/4 inches long, priced around $31.82 (down from an MSRP of $71.01), designed to replace part numbers WR12X21196, AP6985343, and PS12749320 on GE and Hotpoint units.
• WR12X36947: A premium stainless steel handle assembly priced around $228.76.
• WR12X10454: A classic bisque finish handle priced around $26.60.

Handle Part Number	Type / Finish	Typical Price	Key Compatibility / Dimensions
WR12X34830	Freezer Handle (Stainless)	$52.97	R600a compatible models, 1.35 lb
WR12X34550	Set w/ Hardware (Stainless)	$102.47	French door / Side-by-side, 17″ long
WR12X32350	Set of 2 (Black)	$31.82	Fits GE / Hotpoint, 16-3/4″ length
WR12X34310	Freezer Drawer (Stainless)	$49.80	GNE25J, GFE24J, GDE25, GWE19J series
WR12X22148	Handle Set (Various)	$25.99	Standard top/bottom mount models
WR01X11007	Handle Fastener Clip	$12.99	Over 85 GE refrigerator models

Aftermarket brands like Beaquicy and SUPPLYZ offer budget-friendly alternatives ranging between $25.99 and $50.30. However, genuine OEM parts provide guaranteed finish matching, exact hole alignment, and GE’s standard one-year limited parts warranty.

Required Tools and Fastener Assessment

Replacing a handle on a GE refrigerator does not require a massive toolbox. In fact, you likely already have the necessary tools in your garage or utility drawer:

• Hex Keys (Allen Wrenches): The vast majority of GE handles use a 3/32-inch or 1/8-inch Allen wrench for their set screws. Models like GBE21, GDE21, GDE25, GFE24, GFE26, GNE21, GNE25, GNE27, GWE19, GYE18, and QNE27 typically require the 1/8-inch size.
• Larger Hex Key (3/16-inch): Used if the internal mounting stud attached directly to the door skin needs to be tightened into place.
• Small Flathead Screwdriver or Putty Knife: Helpful for gently prying off cosmetic end caps without scratching the paint or stainless steel.
• Phillips Screwdriver: Necessary for standard top-mount or traditional handles that screw directly into the door face from the top or sides.
• Masking Tape: Placing a small strip of blue tape on the door skin right next to the handle base protects the finish from accidental tool slips.

Step-by-Step GE Refrigerator Door Handle Replacement Guide

Once you have verified your part numbers and laid out your tools, replacing the handle takes between 10 and 20 minutes.

Removing Handles With End Caps vs Locking Tabs

GE uses two primary mechanical systems to secure handles without visible screw heads: cosmetic end caps and hidden locking tabs.

Handles with End Caps

1. Inspect the top and bottom ends of the handle. You will see small plastic caps matching the handle color.
2. Wrap the tip of a thin flathead screwdriver in masking tape to prevent marring.
3. Carefully insert the tip into the small seam under the cap edge and pop it off.
4. Beneath the cap, you will find a mounting bolt or screw. Loosen and remove the screws with your screwdriver or hex key while supporting the handle with your free hand.
5. Pull the handle away from the door.

Handles with Locking Tabs

1. Look closely at the inner base of the handle where it meets the door. You may see a small slot containing a flexible locking tab.
2. Insert a small flathead tool or press the tab firmly in the direction indicated by the service manual.
3. Firmly slide the entire handle upward (or sideways on horizontal drawer handles) and pull it off the door mounting standoffs.
4. Inspect the underlying mounting stud. If it wobbles, tighten it securely to the door frame using a 3/16-inch Allen wrench before installing your new part. You can review genuine GE handle hardware specs to confirm you have all the necessary clips and set screws.

GE Refrigerator Door Handle Replacement for French Door and Side-by-Side Models

French door and side-by-side refrigerators require careful alignment so both vertical handles hang evenly and do not collide when closed. If your existing handle has just worked itself loose over time, learning the proper technique for re-securing a loose refrigerator door handle can often save you the expense of buying new parts.

1. Remove Old Hardware: Loosen the Allen set screws located on the inner edge of each handle base (facing the opposite door) using your 3/32″ or 1/8″ hex wrench. Lift the old handle off the door studs.
2. Inspect the Mounting Studs: Check that the anchor studs protruding from the door are snug. If loose, tighten them down until they sit flush against the metal door skin.
3. Position the New Handle: Align the top and bottom sockets of the new handle over the door mounting studs.
4. Push Flush Against the Door: Press the handle firmly against the door face. If there is a gap, the set screw will not engage the groove in the mounting stud correctly, leading to early wobbling.
5. Tighten the Set Screws: Turn the set screws clockwise until they make contact with the stud, then give them an additional quarter to half turn until snug. Avoid over-torquing, which can strip the soft metal hex socket.
6. Check Door Gap Alignment: Close both doors and stand back a few feet. Confirm the handles sit at identical heights and clear each other when opening and closing.

Installing Freezer Drawer Handles vs Fresh Food Door Handles

Bottom freezer drawer handles operate under horizontal pulling forces rather than vertical twisting forces, making their installation slightly different.

The popular WR12X34310 stainless freezer handle fits select French door series like GNE25J, GFE24J, GDE25, GWE19J, and GYE18J. For specific models such as GNE27JYMKFFS, the freezer door handle part number is PS16542770 ($65.84).

1. Locate the Set Screws: On horizontal freezer handles, the set screws are located on the underside of the handle facing the floor.
2. Loosen and Slide: Loosen both bottom set screws with your 1/8-inch Allen wrench. Slide the handle to the left or pull outward depending on the bracket design.
3. Mount the New Handle: Position the replacement handle over the left and right mounting brackets.
4. Lock in Place: Slide the handle firmly toward the right until it seats against the bracket stop.
5. Secure the Screws: Tighten the underside set screws until the handle no longer shifts horizontally when pulled. Test by opening the heavily loaded freezer drawer multiple times to ensure zero play.

Troubleshooting Loose Handles, Stripped Studs, and Safety Precautions

Even a straightforward repair can run into unexpected snags if internal fasteners are worn. If you notice persistent resistance or door sag while working on your handles, troubleshooting refrigerator door hinge issues will help ensure the entire door assembly remains balanced and properly aligned.

Tightening a Loose Handle Without Full Replacement

If your GE handle rattles or pulls away from the door by a fraction of an inch, full replacement is rarely needed:

1. Locate the set screw on the handle base.
2. Push the handle hard against the door face with one hand to remove all slack.
3. Insert your 3/32″ or 1/8″ hex wrench and turn clockwise until tight.
4. If the screw turns infinitely without grabbing, the threads on either the set screw or the internal mounting block have stripped.

Fixing Stripped Mounting Studs and Damaged Fasteners

Stripped hardware is the leading reason handles fail to stay tight. GE uses modular fastening clips on many models, such as the WR01X11007 handle fastener (replaces AP5668500), which costs approximately $12.99 and fits over 85 models. On newer French door units, the fastener handle assembly is part WR01X39781 (priced around $61.39).

If the internal fastener is damaged:

1. Remove the handle completely.
2. Unscrew the damaged mounting clip or stud from the door skin using a Phillips screwdriver or wrench.
3. Install a replacement GE refrigerator door handle fastener WR01X11007.
4. Hand-thread the fastener first to avoid cross-threading, then tighten securely against the door panel.
5. Re-mount the handle and tighten the set screws.

Safety Precautions for Units with R600a Flammable Refrigerant

Modern GE refrigerators manufactured in recent years use R600a (isobutane), an eco-friendly but flammable hydrocarbon refrigerant.

While replacing an external door handle does not open the sealed refrigeration loop, you must observe practical safety rules:

• Avoid Drilling or Modifying the Door Skin: Refrigerator door panels contain insulation and, in some designs, internal electrical wiring harnesses for door dispensers and control boards. Never drill new mounting holes into the door skin.
• Check Fastener Lengths: Use only factory-specified screws and fasteners. Excessively long aftermarket screws can penetrate deep into internal foam insulation or contact internal conduits.
• Use Manual Hand Tools: Avoid heavy power drills or impact drivers that could slip, puncture the metal casing, or strip the delicate mounting anchor threads.

Frequently Asked Questions About GE Refrigerator Door Handles

Can I replace just the handle fastener clip instead of the entire handle?

Yes. If your handle exterior is in good cosmetic condition but wobbles because the internal plastic or metal anchor has snapped, you can purchase individual fastener clips. Parts such as the GE WR01X11007 fastener clip cost between $12.99 and $15.00, saving you significant money compared to buying a full $100+ handle assembly.

What size Allen wrench is needed for GE refrigerator door handles?

Most GE side-by-side and French door handles require a 3/32-inch or 1/8-inch Allen wrench for the set screws located on the handle ends. If you are tightening the base mounting stud attached directly to the door frame, you will typically need a 3/16-inch Allen wrench.

Are aftermarket door handles as reliable as genuine GE OEM parts?

Aftermarket handles from reputable suppliers can save you 30% to 50% compared to OEM components. However, some aftermarket parts show slight variations in the stainless steel grain or color hue compared to original GE finishes. Genuine OEM parts (like WR12X34830 or WR12X34550) guarantee exact dimension matching and come with GE’s one-year limited replacement warranty.

Conclusion

Fixing a loose or broken refrigerator handle is one of the most satisfying DIY repairs you can complete in your kitchen. With a simple hex key, fifteen minutes of your time, and the correct replacement part number, you can eliminate rattles and restore a clean, sturdy feel to your refrigerator doors.
